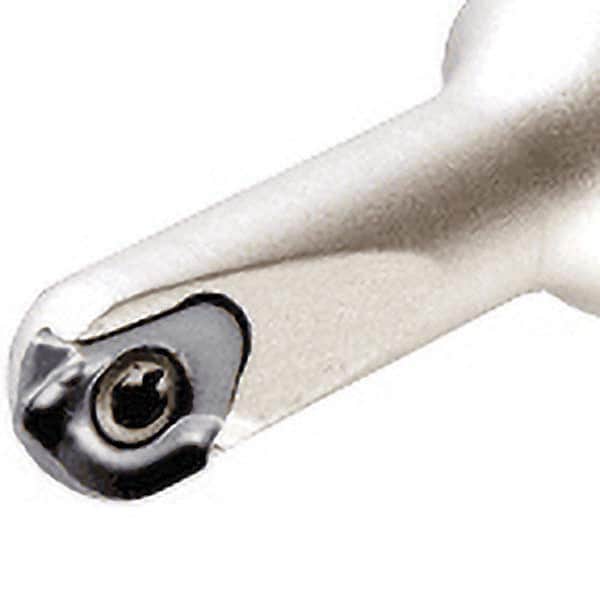

Iscar - 0.315" Cut Diam, 0.21" Max Depth of Cut, 1/2" Shank Diam, 3" OAL, Indexable Ball Nose End Mill - 1" Head Length, Straight Shank, CM D.31 Toolholder, CR-D8/.31 Insert
Item #: 52696044
Brand: Iscar
Model #: 3100589
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | CR-D8/.31 |
| Toolholder Style | CM D.31 |
| Series | Heliball |
| Overall Length (Decimal Inch) | 3.0000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.0000 |
