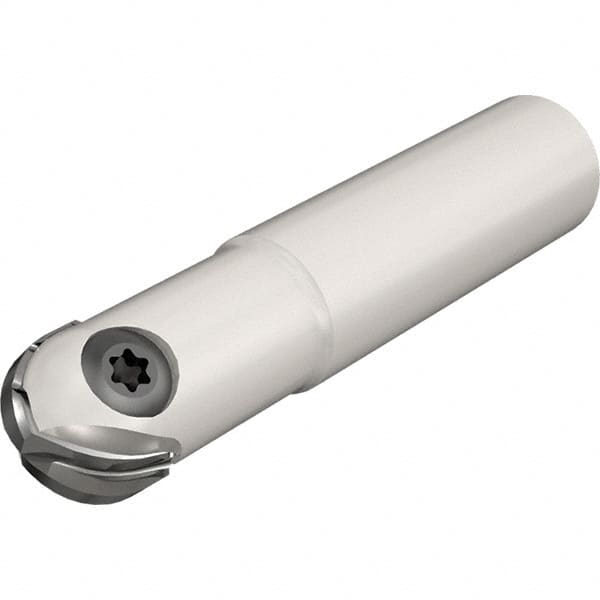

Iscar - 10mm Cut Diam, 6.4mm Max Depth of Cut, 12mm Shank Diam, 90mm OAL, Indexable Ball Nose End Mill - 25mm Head Length, Straight Shank, CM D10 Toolholder, CR-D10 Insert
Item #: 52696283
Brand: Iscar
Model #: 3100554
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | CR-D10 |
| Toolholder Style | CM D10 |
| Series | Heliball |
| Overall Length (mm) | 90.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
