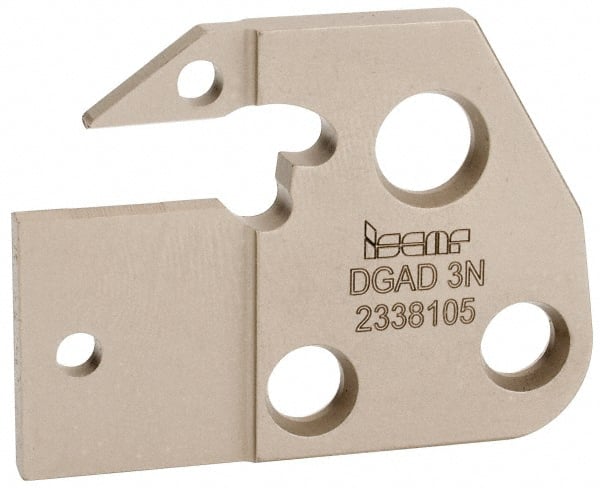

Iscar - 1.1811" Blade Height, 0.1575" Blade Width, 1.6339" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - DGAD Blade
Item #: 52699535
Brand: Iscar
Model #: 2394956
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 30.00 |
| Blade Height (Decimal Inch) | 1.1811 |
| Blade Width (mm) | 4.00 |
| Blade Width (Decimal Inch) | 0.1575 |
| Blade Overall Length (mm) | 41.50 |
| Blade Overall Length (Decimal Inch) | 1.6339 |
| Blade Style | DGAD |
| Insert Style | DGN..; DGN R/L..; HGN..; HGR/L..; GRIP.. |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Cutting Height (mm) | 24.00 |
| Cutting Height (Decimal Inch) | 0.9449 |
| Minimum Insert Width (mm) | 3.00 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Maximum Insert Width (mm) | 3.18 |
| Maximum Insert Width (Decimal Inch) | 0.1252 |
| Manufacturers Catalog Number | DGAD 3N |
