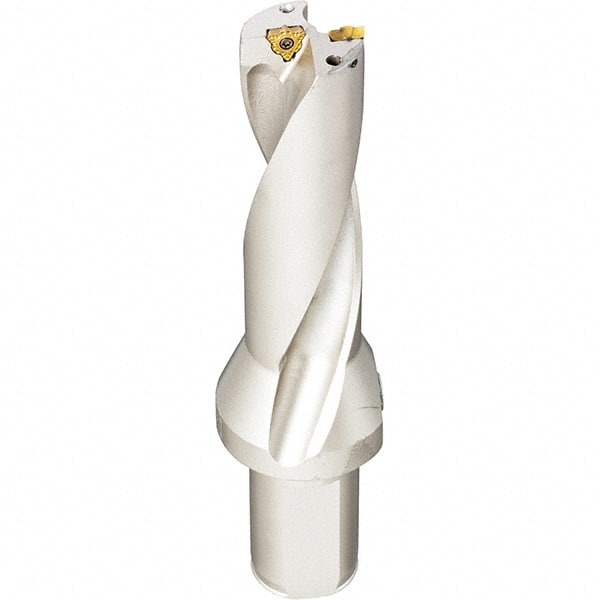

Iscar - 3.84" Max Drill Depth, 3xD, 1-9/32" Diam, Indexable Insert Drill - 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 52705415
Brand: Iscar
Model #: 3200164
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DZ |
| Drill Diameter (Inch) | 1-9/32 |
| Drill Diameter (Decimal Inch) | 1.2813 |
| Maximum Drill Depth (Decimal Inch) | 3.8400 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Overall Length/Projection (Decimal Inch) | 7.8800 |
| Insert Compatibility | WOLH-GF; WOLH-SW |
| Body Length (Decimal Inch) | 5.5200 |
| Shank Length (Decimal Inch) | 2.3600 |
| Collar Diameter (Decimal Inch) | 1.9700 |
| Series | DZDRILLS |
