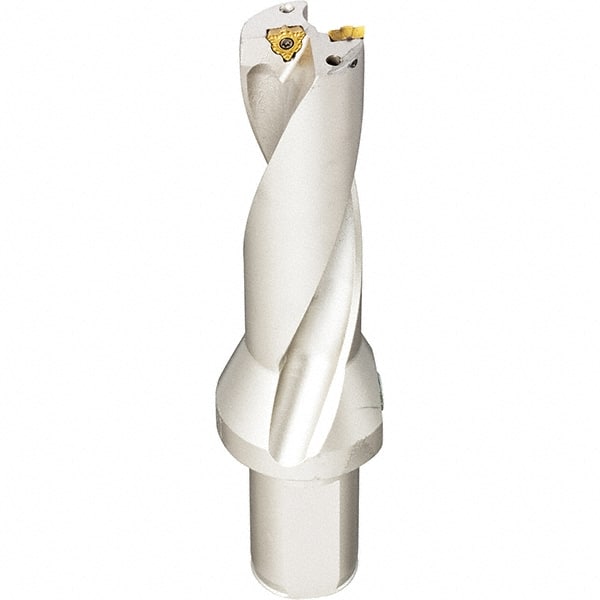

Iscar - 4.41" Max Drill Depth, 3xD, 1-15/32" Diam, Indexable Insert Drill - 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 52705480
Brand: Iscar
Model #: 3200301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DZ |
| Drill Diameter (Inch) | 1-15/32 |
| Drill Diameter (Decimal Inch) | 1.4688 |
| Maximum Drill Depth (Decimal Inch) | 4.4100 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Overall Length/Projection (Decimal Inch) | 8.9000 |
| Insert Compatibility | WOLH-GF; WOLH-SW |
| Body Length (Decimal Inch) | 6.1500 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (Decimal Inch) | 2.2800 |
| Series | DZDRILLS |
