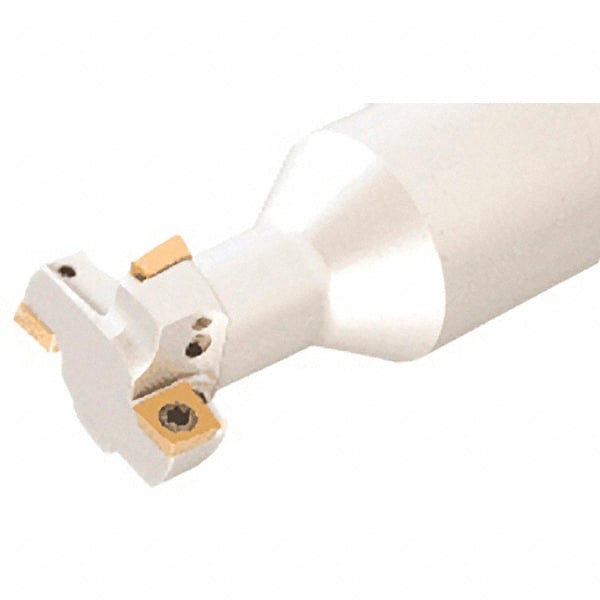

Iscar - 1-9/16" Cutting Diam x 0.8661" Cutting Width, 4 Cutter Inserts, 1.2598" Shank Diam, Indexable T-Slot Cutter - Insert Style XPMT-HQ, 5.1181" OAL
Item #: 52707064
Brand: Iscar
Model #: 3100522
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5630 |
| Cutting Width (Decimal Inch) | 0.8661 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 4 |
| Insert Style | XPMT-HQ |
| Neck Diameter (Decimal Inch) | 0.8150 |
| Overall Length (Decimal Inch) | 5.1181 |
| Maximum Reach (Decimal Inch) | 1.9685 |
| Weldon Flat | Yes |
| Complete Insert Compatibility | XPMT 100408-HQ; XPMT 100408T-HQ |
