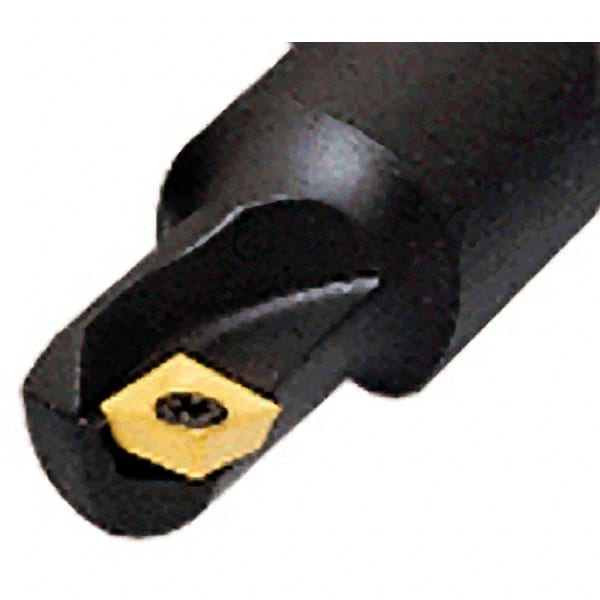

Iscar - 8mm Cut Diam, 5.8mm Max Depth of Cut, 10mm Shank Diam, 70mm OAL, Indexable Square Shoulder End Mill - Cylindrical Shank, 90° Lead Angle, Series Heliquad
Item #: 52708054
Brand: Iscar
Model #: 3110500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length/Projection (mm) | 70.00 |
| Overall Length/Projection (Decimal Inch) | 2.7559 |
| Lead Angle | 90 |
| Series | Heliquad |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 1 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 2.1260 |
| Shank Length (mm) | 54.00 |
