$Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.343" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, O45MT\xB6R90MT\xB6S45MT\xB6S90MT Insert, Right Hand Cut, 5 Flutes, Series FCM - Exact Tooling$

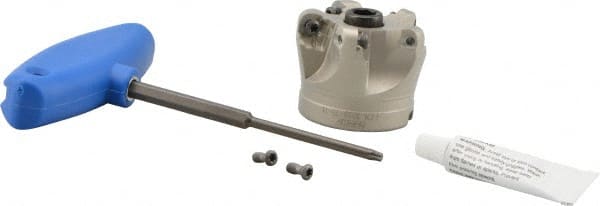

Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.343" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, O45MT\xB6R90MT\xB6S45MT\xB6S90MT Insert, Right Hand Cut, 5 Flutes, Series FCM

Item #: 52708245
Brand: Iscar
Model #: 3101240
Exact Tooling IR#: 04

Product Specifications

Cutting Diameter (Inch) 2

Cutting Diameter (Decimal Inch) 2.0000

Arbor Hole Diameter (Inch) 3/4

Arbor Hole Diameter (Decimal Inch) 0.7500

Lead Angle 45

Overall Height (Decimal Inch) 1.5700

Insert Compatibility O45MT; R90MT; S45MT; S90MT

Series FCM

Through Coolant No

Maximum Depth of Cut (Decimal Inch) 0.3430

Number of Cutter Inserts 5

Insert Holding Method Screw

Number of Flutes 5

Cutting Direction Right Hand

Complete Insert Compatibility 045MT; R90MT; S45MT; S90MT

Product Specifications
Cutting Diameter (Inch)	2
Cutting Diameter (Decimal Inch)	2.0000
Arbor Hole Diameter (Inch)	3/4
Arbor Hole Diameter (Decimal Inch)	0.7500
Lead Angle	45
Overall Height (Decimal Inch)	1.5700
Insert Compatibility	O45MT; R90MT; S45MT; S90MT
Series	FCM
Through Coolant	No
Maximum Depth of Cut (Decimal Inch)	0.3430
Number of Cutter Inserts	5
Insert Holding Method	Screw
Number of Flutes	5
Cutting Direction	Right Hand
Complete Insert Compatibility	045MT; R90MT; S45MT; S90MT
