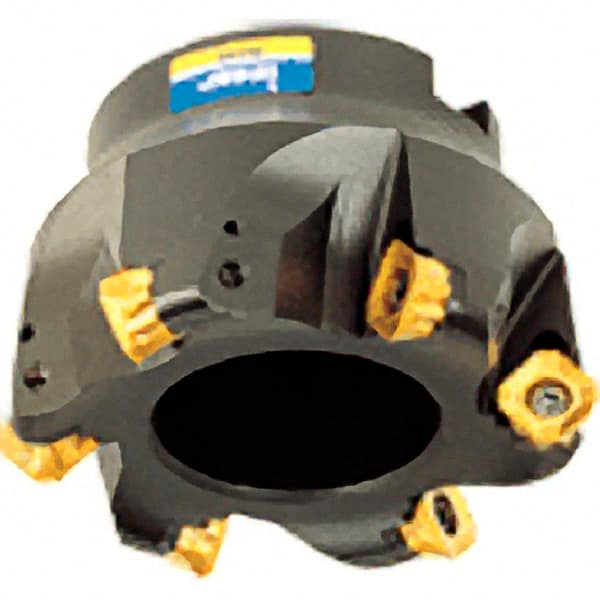

Iscar - 3" Cut Diam, 1" Arbor Hole, 0.343" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, O45MT\xB6R90MT\xB6S45MT\xB6S90MT Insert, Right Hand Cut, 7 Flutes, Series FCM
Item #: 52708260
Brand: Iscar
Model #: 3181002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | O45MT; R90MT; S45MT; S90MT |
| Series | FCM |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3430 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 045MT; R90MT; S45MT; S90MT |
