$Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.343" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, O45MT\xB6R90MT\xB6S45MT\xB6S90MT Insert, Right Hand Cut, 8 Flutes, Series FCM - Exact Tooling$

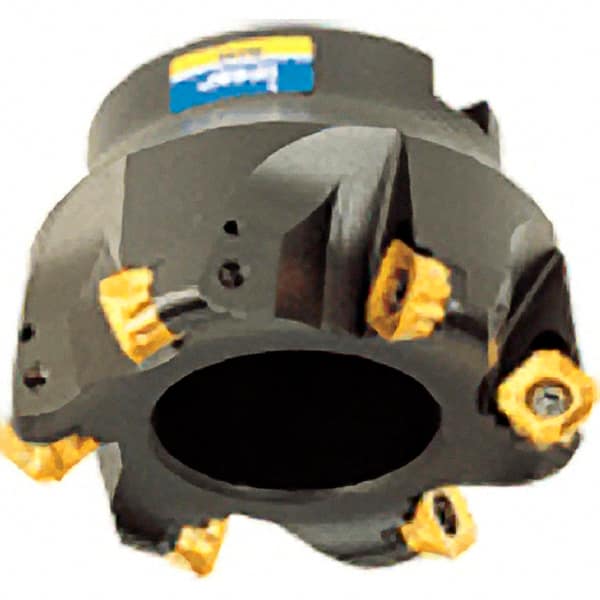

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.343" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, O45MT\xB6R90MT\xB6S45MT\xB6S90MT Insert, Right Hand Cut, 8 Flutes, Series FCM

Item #: 52708278
Brand: Iscar
Model #: 3181024
Exact Tooling IR#: 04

Product Specifications

Cutting Diameter (Inch) 4

Cutting Diameter (Decimal Inch) 4.0000

Arbor Hole Diameter (Decimal Inch) 1.5000

Lead Angle 45

Overall Height (Decimal Inch) 2.0000

Insert Compatibility O45MT; R90MT; S45MT; S90MT

Series FCM

Through Coolant No

Maximum Depth of Cut (Decimal Inch) 0.3430

Number of Cutter Inserts 8

Insert Holding Method Screw

Number of Flutes 8

Cutting Direction Right Hand

Complete Insert Compatibility 045MT; R90MT; S45MT; S90MT

Product Specifications
Cutting Diameter (Inch)	4
Cutting Diameter (Decimal Inch)	4.0000
Arbor Hole Diameter (Decimal Inch)	1.5000
Lead Angle	45
Overall Height (Decimal Inch)	2.0000
Insert Compatibility	O45MT; R90MT; S45MT; S90MT
Series	FCM
Through Coolant	No
Maximum Depth of Cut (Decimal Inch)	0.3430
Number of Cutter Inserts	8
Insert Holding Method	Screw
Number of Flutes	8
Cutting Direction	Right Hand
Complete Insert Compatibility	045MT; R90MT; S45MT; S90MT
