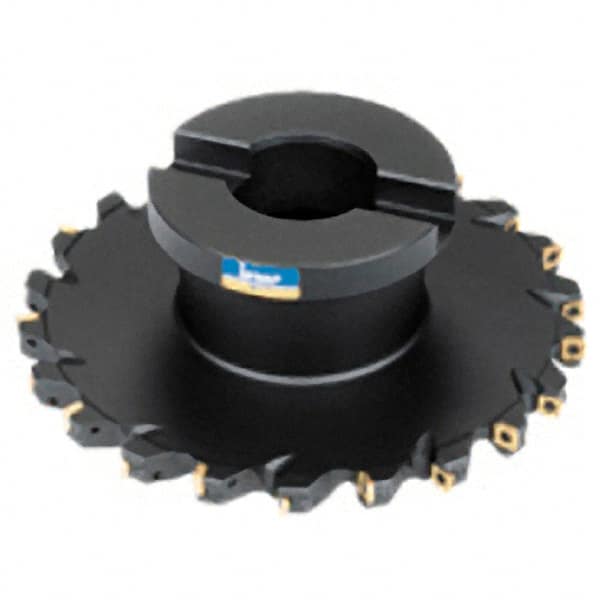

Iscar - Shell Mount A Connection, 0.315" Cutting Width, 0.8937" Depth of Cut, 80mm Cutter Diam, 0.8661" Hole Diam, 14 Tooth Indexable Slotting Cutter - FDN Toolholder, Q/XOMT Insert
Item #: 52708294
Brand: Iscar
Model #: 3100745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount A |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 22.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.8937 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 14 |
| Toolholder Style | FDN |
| Series | Heliquad(FDN) |
| Insert Style | Q/XOMT |
| Staggered Tooth | Yes |
| Hub Diameter (mm) | 45.00 |
| Hub Diameter (Decimal Inch) | 1.7717 |
