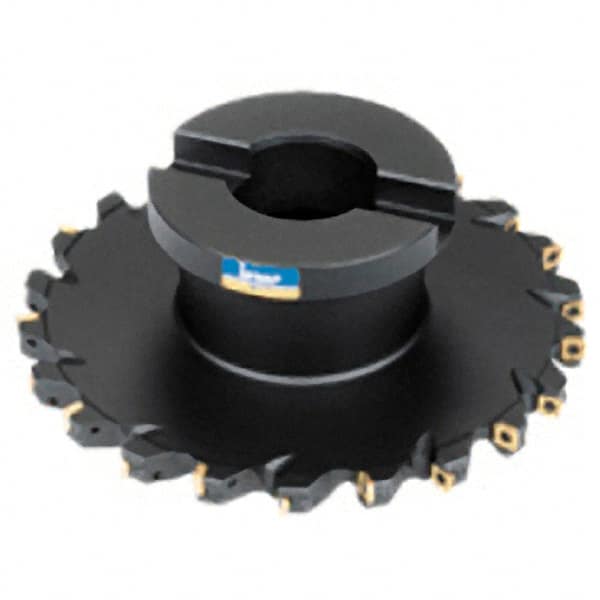

Iscar - Shell Mount B Connection, 0.3937" Cutting Width, 1.3976" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 20 Tooth Indexable Slotting Cutter - FDN Toolholder, Q/XOMT Insert
Item #: 52708328
Brand: Iscar
Model #: 3100748
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 35.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.3976 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 20 |
| Toolholder Style | FDN |
| Series | Heliquad(FDN) |
| Insert Style | Q/XOMT |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Hub Diameter (mm) | 65.00 |
| Hub Diameter (Decimal Inch) | 2.5591 |
