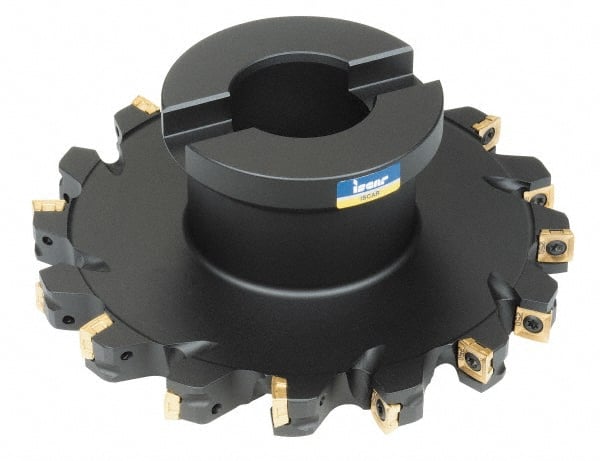

Iscar - Shell Mount B Connection, 1/2" Cutting Width, 1.68" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 16 Tooth Indexable Slotting Cutter - FDN Toolholder, X/QPMT 100408PDTN Insert
Item #: 52708468
Brand: Iscar
Model #: 3100873
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.6800 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 16 |
| Toolholder Style | FDN |
| Series | Heliquad(FDN) |
| Insert Style | X/QPMT 100408PDTN |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Radius | No |
