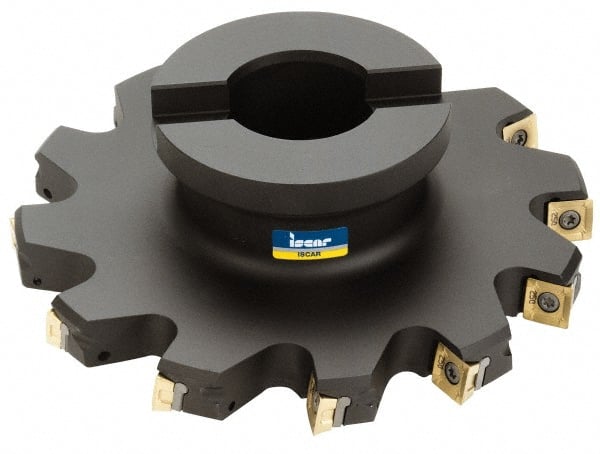

Iscar - Shell Mount B Connection, 0.37" Cutting Width, 1.41" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 12 Tooth Indexable Slotting Cutter - FSB Toolholder, Q/X/SPMT 100408PDTN Insert
Item #: 52708609
Brand: Iscar
Model #: 3101094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Depth of Cut (Decimal Inch) | 1.4100 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 12 |
| Toolholder Style | FSB |
| Series | IscarMill(FSB) |
| Insert Style | Q/X/SPMT 100408PDTN |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Cutting Width (Decimal Inch) | 0.3700 |
| Hub Diameter (Decimal Inch) | 2.5600 |
| Radius | No |
