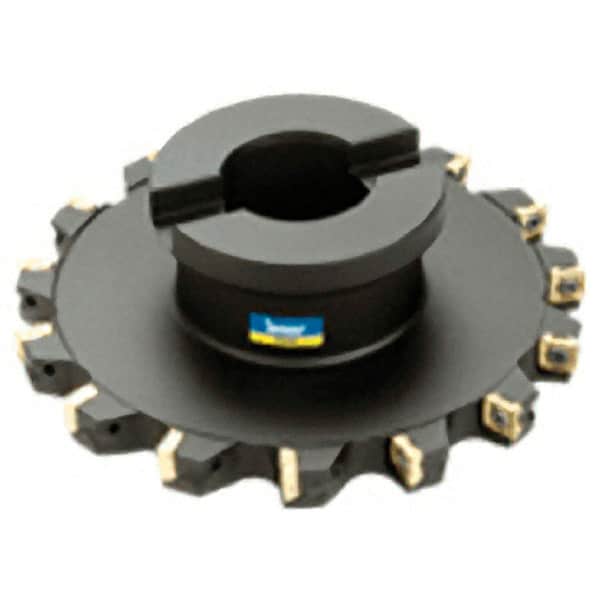

Iscar - Shell Mount B Connection, 0.3543" Cutting Width, 63/64" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 11 Tooth Indexable Slotting Cutter - FST Toolholder, Q/XPMT Insert
Item #: 52708625
Brand: Iscar
Model #: 3100739
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 9.00 |
| Cutting Width (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 11 |
| Toolholder Style | FST |
| Series | IscarMill(FST) |
| Insert Style | Q/XPMT |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
