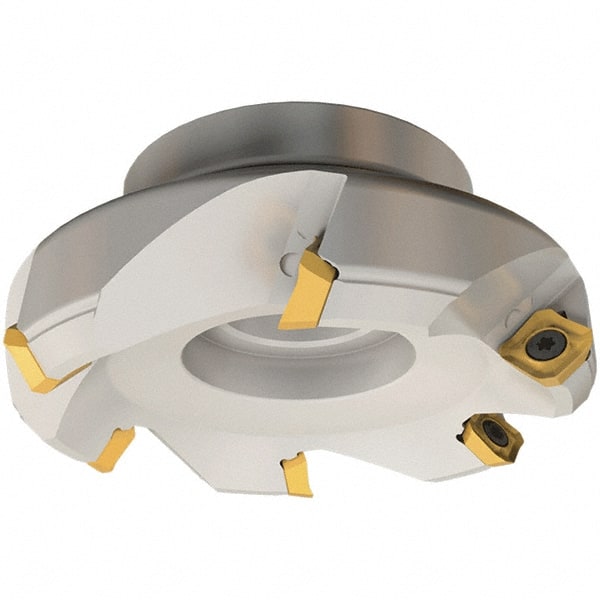

Iscar - 110mm Cut Diam, 32mm Arbor Hole, 6.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SE.. 12 Insert, Right Hand Cut, 6 Flutes, Series IscarMill
Item #: 52709003
Brand: Iscar
Model #: 3100373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 110.00 |
| Cutting Diameter (Decimal Inch) | 4.3307 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SE.. 12 |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F45ST |
| Number of Flutes | 6 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | SEHW 1204AFTN; SEKT 1204AFR-HM; SEKT 1204AFR-RM; SEMT 1204AF-R-HS; SEMT 1204AFTN-76; SEMT 12T3AFTN-76; SEMW 1204AFTN |
