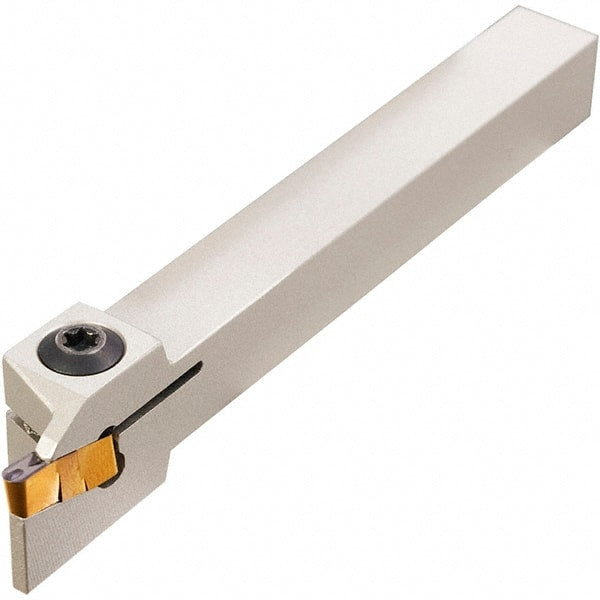

Iscar - GHD, External, Right Hand, 12mm Max Depth of Cut, 5 to 6.4mm Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 150mm OAL
Item #: 52713211
Brand: Iscar
Model #: 2800704
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 6.40 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GHD |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 29.90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1772 |
| Complete Insert Compatibility | GIF 5.00E-0.80; GIF 5.00E-0.60; GIF 5.00E-0.40; GIF 5.28-0.20; GIF 5.39-0.20; GIF 5.90-0.20; GIF 6.00E-0.80; GIF 6.00E-0.40; GIF 6.35-0.55; GIF 6.35-0.50; GIM 5C; GIM 6C; GIMF 502; GIMF 508; GIMF 605; GIMF 608; GIP 5.00-0.40; GIP 6.00-0.80; GIP 6.00-0.40 |
