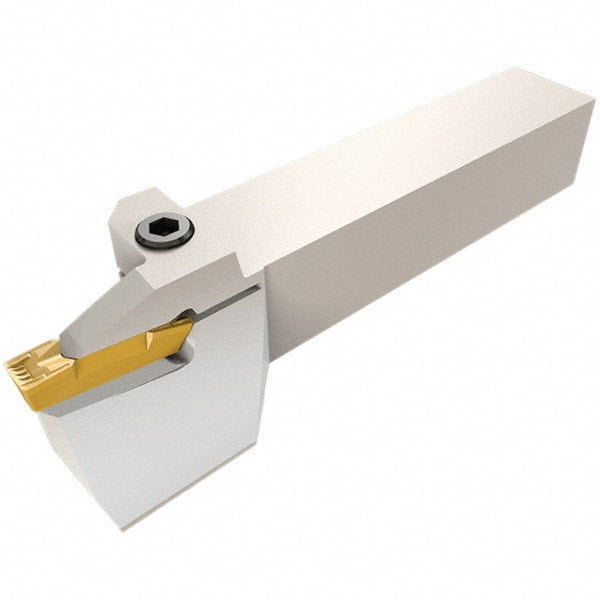

Iscar - GHFG, Internal or External, Left Hand, 25mm Max Depth of Cut, 8 to 8mm Groove Width, Indexable Grooving Tool Holder - GD.. 8.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 52713260
Brand: Iscar
Model #: 2800675
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GHFG |
| Insert Compatibility | GD.. 8.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Maximum Groove Outside Diameter (mm) | 82.00 |
| Minimum Axial Groove Inside Diameter(mm) | 63.00 |
| Complete Insert Compatibility | GDMM 8CC; GDMY 808; GDMY 840; GDMY 840F; GIFG 8.00E-1.20; GIFG 8.00E-0.80 |
