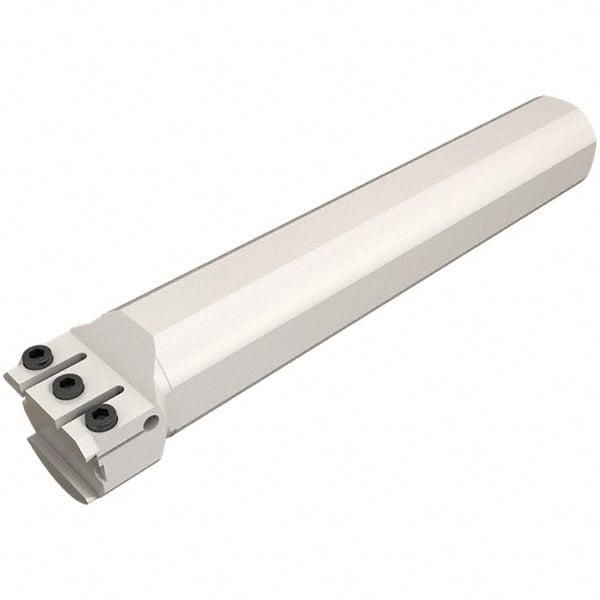

Iscar - GHIC, Internal, Neutral, 20mm Max Depth of Cut, 1.6 to 6.4mm Groove Width, Indexable Grooving Tool Holder - GF.., GI.., TGMF, TIP Insert Compatibility, 53mm Shank Height, 40mm Shank Width, 260mm OAL
Item #: 52713435
Brand: Iscar
Model #: 2800582
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Minimum Groove Width (mm) | 1.60 |
| Maximum Groove Width (mm) | 6.40 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (mm) | 260.00 |
| Overall Length (Decimal Inch) | 10.2362 |
| Toolholder Style | GHIC |
| Insert Compatibility | GF..; GI..; TGMF; TIP |
| Shank Height (mm) | 53.00 |
| Shank Height (Decimal Inch) | 2.0866 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 70.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.7559 |
| Head Height (Decimal Inch) | 2.0866 |
| Head Height (mm) | 53.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.7559 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
