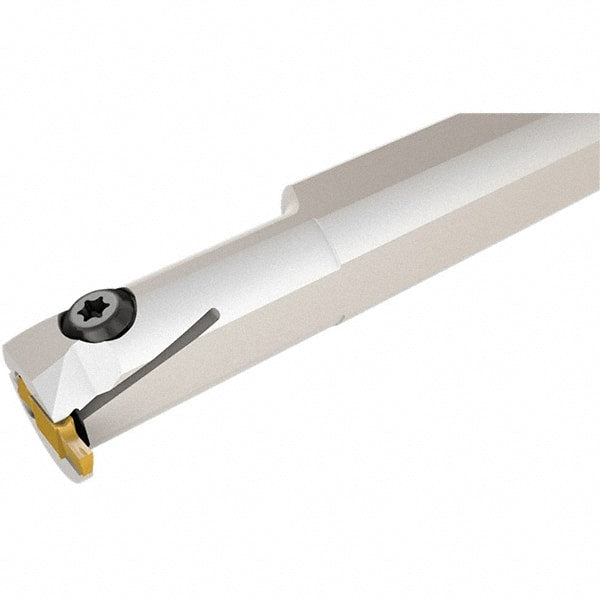

Iscar - 39mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, GHI Indexable Boring Bar - GI.I, GIMIY Insert
Item #: 52713708
Brand: Iscar
Model #: 2800357
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 39.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5354 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | GI.I; GIMIY |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 22.80 |
| Center to Cutting Edge (Decimal Inch) | 0.8976 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIFI 4.78-0.55; GIFI 5.00E-0.50; GIFI 5.28-0.20; GIFI 6.00E-0.80; GIMIY 404; GIPI 4.00E-0.40; GIPI 4.23-0.10; GIPI 4.78-0.55; GIPI 5.00E-0.50; GIPI 6.35E-0.55 |
