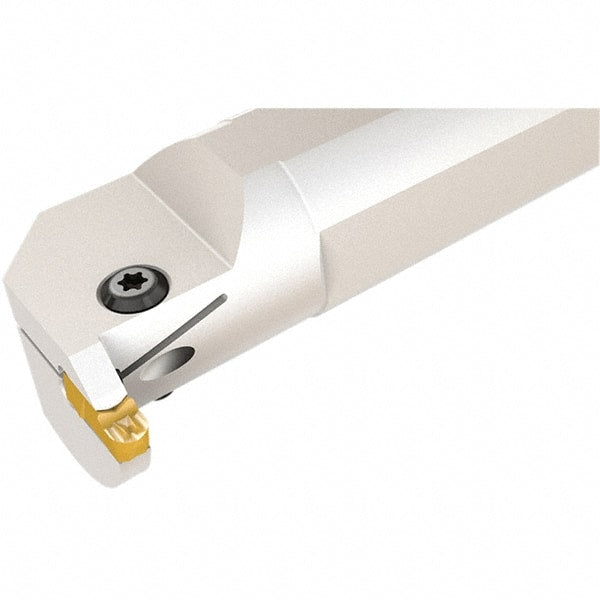

Iscar - 53mm Min Bore Diam, 250mm OAL, 40mm Shank Diam, GHI-C Indexable Boring Bar - GI.I, TIPI 5.4MT Insert
Item #: 52713757
Brand: Iscar
Model #: 2800574
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI-C |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 53.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.0866 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | GI.I; TIPI 5.4MT |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 32.20 |
| Center to Cutting Edge (Decimal Inch) | 1.2677 |
| Complete Insert Compatibility | GIFI 5.00E-0.50; GIFI 5.28-0.20; GIFI 6.00E-0.80; GIPI 5.00E-0.50; GIPI 6.35-3.18; GIPI 6.35E-0.55; TIPI 5.4MT-0.20 |
