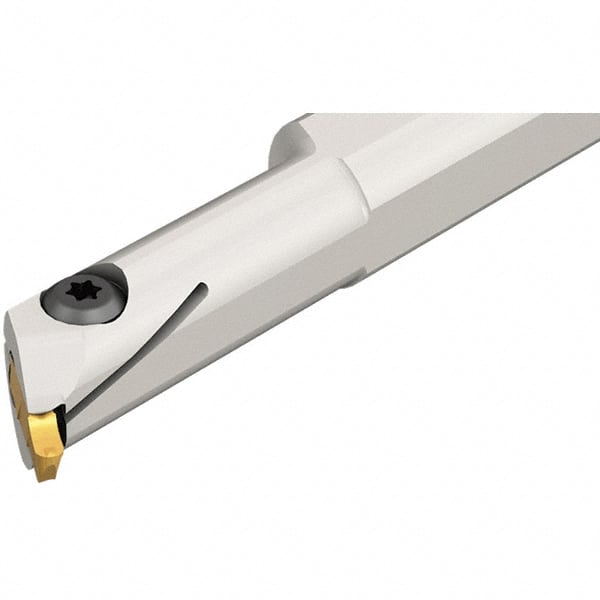

Iscar - 20mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, GHIU Indexable Boring Bar - 51mm Max Bore Depth, GI.I Insert
Item #: 52713823
Brand: Iscar
Model #: 2800391
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIU |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 51.00 |
| Maximum Bore Depth (Decimal Inch) | 2.0079 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | GI.I |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Undercutting |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Complete Insert Compatibility | GIPI 3.00-1.5UR; GIPI 4.00-2.0UR |
