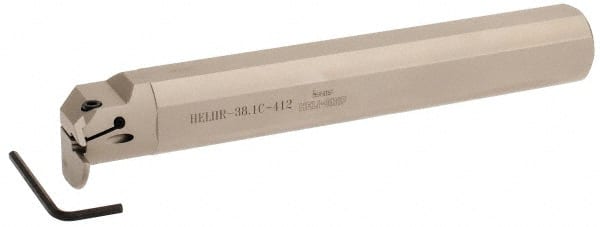

Iscar - HELII, Internal, Right Hand, 0.472" Max Depth of Cut, 0.157 to 3/16" Groove Width, Indexable Grooving Tool Holder - 1-1/2" Shank Width, 10" OAL, Through Coolant
Item #: 52719820
Brand: Iscar
Model #: 2500488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 10.0000 |
| Toolholder Style | HELII |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | Heli-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 2.0800 |
| Center to Cutting Edge (Decimal Inch) | 1.2300 |
