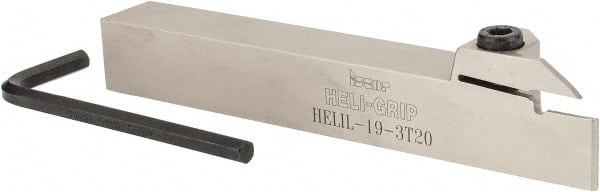

Iscar - HELI, External, Left Hand, 0.118 to 1/8" Groove Width, Indexable Grooving Tool Holder - GRIP 3.., HGN 30.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5-1/2" OAL
Item #: 52719879
Brand: Iscar
Model #: 2500549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.5000 |
| Toolholder Style | HELI |
| Insert Compatibility | GRIP 3..; HGN 30.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7000 |
| Complete Insert Compatibility | GRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT |
