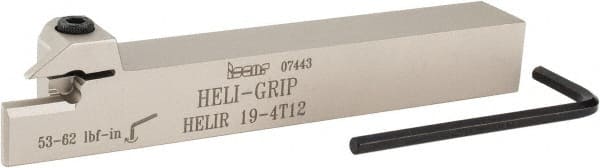

Iscar - 0.47" Max Depth, 0.157" to 0.187" Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 52720034
Brand: Iscar
Model #: 2500553
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Heli-Grip |
| Toolholder Style | HELI |
| Insert Compatibility | DG..; GRIP; HGN 300. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6900 |
| Head Length (Decimal Inch) | 1.1400 |
| Shank Length (Decimal Inch) | 4.3600 |
| Manufacturers Catalog Number | HELIR 19-4T12 |
| Complete Insert Compatibility | DGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630 |
| Insert Seat Size | 0.1 |
