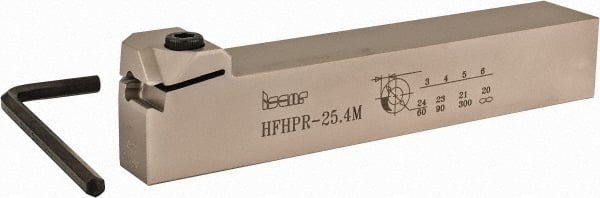

Iscar - HFHP, External, Right Hand, 0.197" Max Depth of Cut, 0.118 to 0.236" Groove Width, Indexable Grooving Tool Holder - HFP.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52721198
Brand: Iscar
Model #: 2500257
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HFHP |
| Insert Compatibility | HFP.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Self Clamp |
| Maximum Hole Depth (Decimal Inch) | 0.9800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2200 |
| Maximum Groove Outside Diameter (Decimal Inch) | 78.7400 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 0.9500 |
| Head Height (Decimal Inch) | 1.3500 |
| Head Length (Decimal Inch) | 0.9800 |
| Shank Length (Decimal Inch) | 6.9800 |
| Complete Insert Compatibility | HFPL 3003; HFPL 3015; HFPL 4004; HFPL 4020; HFPL 5004; HFPL 5025; HFPL 6004; HFPL 6030; HFPR 3003; HFPR 3015; HFPR 4004; HFPR 4020; HFPR 5004; HFPR 5025; HFPR 6004; HFPR 6030 |
