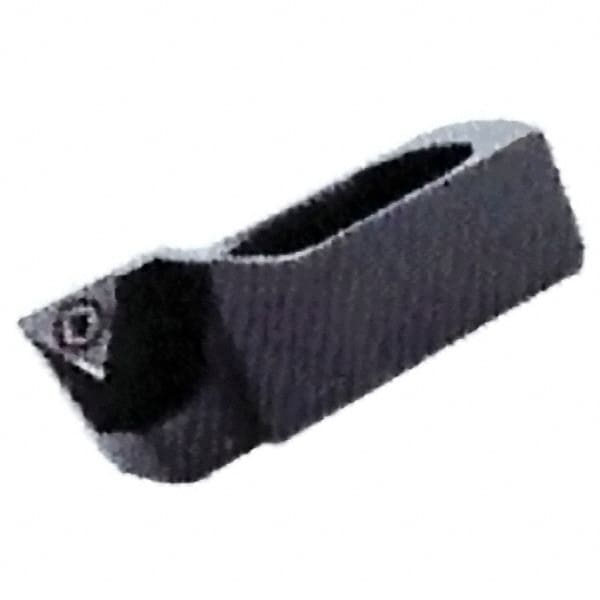

Iscar - Series Itsbore, 48mm Min Bore Diam, Boring Cartridge - 14mm Back of Bar to Cutting Edge, TP.. Insert, 44.6mm OAL, 91° Lead Angle
Item #: 52723202
Brand: Iscar
Model #: 4550331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Minimum Bore Diameter (Decimal Inch) | 1.8898 |
| Minimum Bore Diameter (mm) | 48.00 |
| Insert Style | TP.. |
| Boring Head Compatibility | BBH 30/40; BBH D16; BHE MB; BHF L200; BHF MB |
| Overall Length (mm) | 44.60 |
| Overall Length (Decimal Inch) | 1.7559 |
| Lead Angle | 91 |
| Back of Bar to Cutting Edge (mm) | 14.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5512 |
| Complete Insert Compatibility | TPGW-M3; TPGX |
