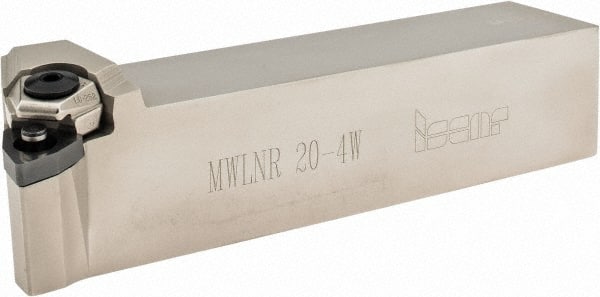

Iscar - MWLN, Right Hand Cut, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, WNM..43.. Insert Compatibility, Series Isoturn
Item #: 52726429
Brand: Iscar
Model #: 3601335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Isoturn |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | WNM..43.. |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.2500 |
