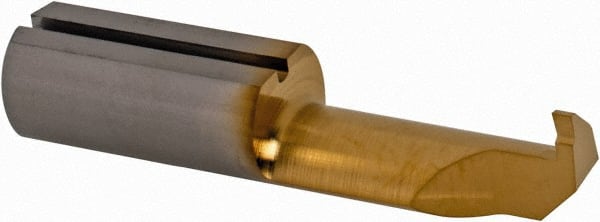

Grooving Tool: Solid Carbide, 0.039″ Groove Width
Item #: 52728060
Brand: Iscar
Model #: 6402403
Product Specifications
| Minimum Hole Diameter (Decimal Inch) | 0.2680 |
| Minimum Hole Diameter (mm) | 6.81 |
| Groove Width (Decimal Inch) | 0.0390 |
| Groove Width (mm) | 0.99 |
| Shank Diameter (mm) | 7.01 |
| Overall Length (Decimal Inch) | 1.1810 |
| Overall Length (mm) | 30.00 |
| Finish | TiN |
| Material | Solid Carbide |
| Manufacturer Grade | IC228 |
| Maximum Hole Depth (Decimal Inch) | 0.5510 |
| Maximum Hole Depth (mm) | 14.00 |
| Shank Length (Decimal Inch) | 0.6300 |
| Projection (mm) | 2.49 |
| Projection (Decimal Inch - 4 Decimals) | 0.0980 |
