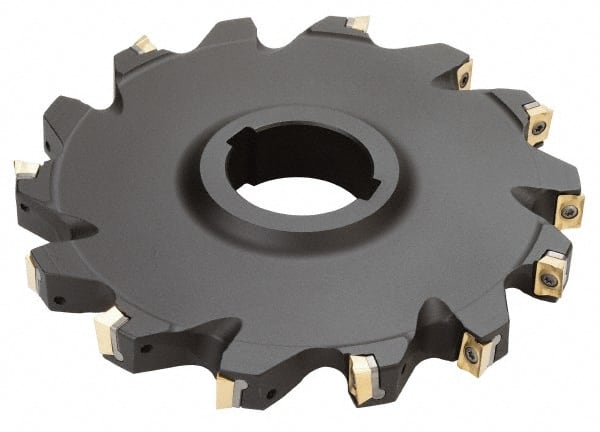

Iscar - Arbor Hole Connection, 0.31" Cutting Width, 0.68" Depth of Cut, 3" Cutter Diam, 1" Hole Diam, 12 Tooth Indexable Slotting Cutter - SDN Toolholder, X/QOMT 060204-HQ Insert
Item #: 52732229
Brand: Iscar
Model #: 3101038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3100 |
| Maximum Depth of Cut (Decimal Inch) | 0.6800 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 12 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | X/QOMT 060204-HQ |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3100 |
| Maximum Cutting Width (Decimal Inch) | 0.3100 |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.4400 |
| Complete Insert Compatibility1 | QOMT 060204-HQ; XOMT 060204-HQ |
