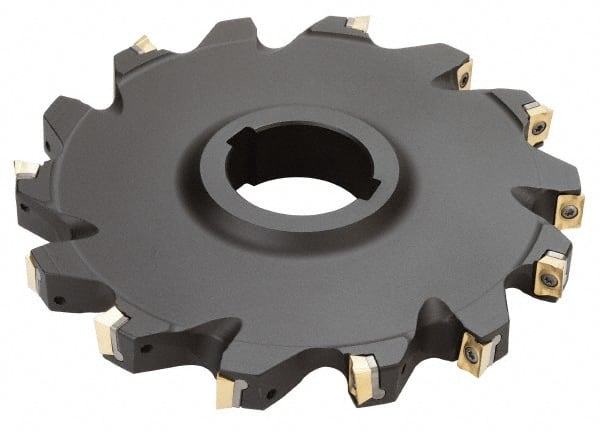

Iscar - Arbor Hole Connection, 0.37" Cutting Width, 1.06" Depth of Cut, 4" Cutter Diam, 1-1/4" Hole Diam, 14 Tooth Indexable Slotting Cutter - SDN Toolholder, X/QOMT 060204-HQ Insert
Item #: 52732245
Brand: Iscar
Model #: 3101040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Depth of Cut (Decimal Inch) | 1.0600 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 14 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | X/QOMT 060204-HQ |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Cutting Width (Decimal Inch) | 0.3700 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility1 | QOMT 060204-HQ; XOMT 060204-HQ |
