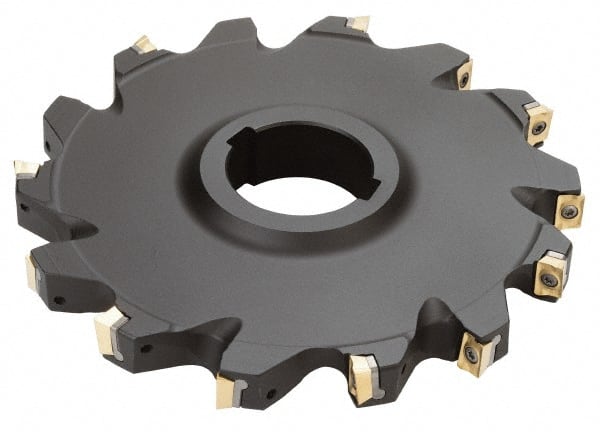

Iscar - Arbor Hole Connection, 0.37" Cutting Width, 1.31" Depth of Cut, 5" Cutter Diam, 1-1/2" Hole Diam, 16 Tooth Indexable Slotting Cutter - SDN Toolholder, X/QOMT 060204-HQ Insert
Item #: 52732252
Brand: Iscar
Model #: 3101041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Depth of Cut (Decimal Inch) | 1.3100 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 16 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | X/QOMT 060204-HQ |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3700 |
| Maximum Cutting Width (Decimal Inch) | 0.3700 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility1 | QOMT 060204-HQ; XOMT 060204-HQ |
