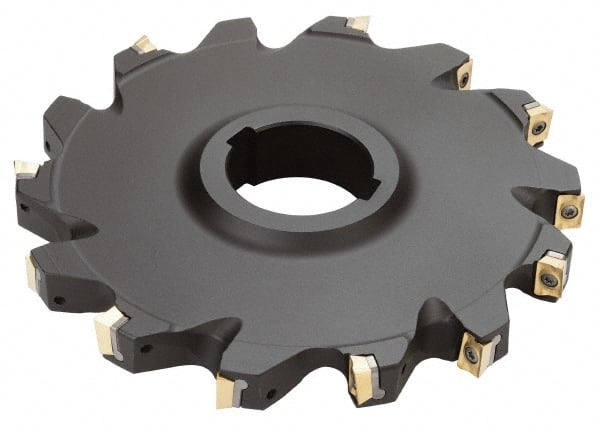

Iscar - Arbor Hole Connection, 1/2" Cutting Width, 1.31" Depth of Cut, 5" Cutter Diam, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - SDN Toolholder, QPMT PDTN Insert
Item #: 52732260
Brand: Iscar
Model #: 3101048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.3100 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | QPMT PDTN |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.6250 |
