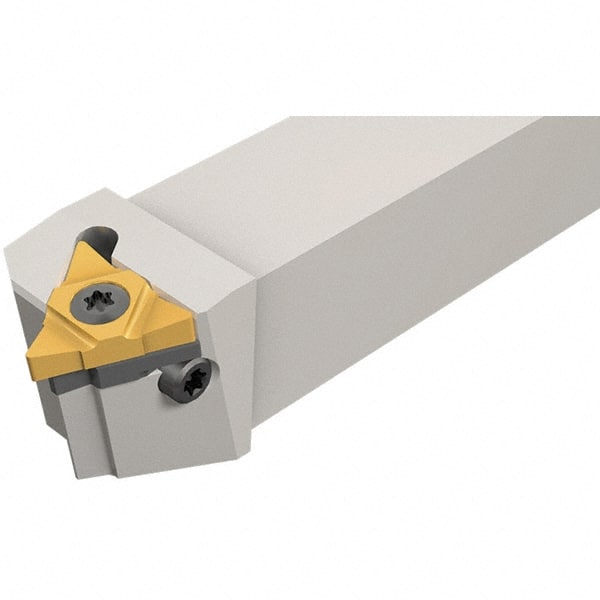

Iscar - External Thread, Right Hand Cut, 10mm Shank Width x 10mm Shank Height Indexable Threading Toolholder - 100mm OAL, Various Insert Compatibility, SE Toolholder, Series IscarThread
Item #: 52733029
Brand: Iscar
Model #: 3800123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Insert Compatibility | ER-NPTF; ER/L-60; ER/L-55; ER/L-ABUT; ER/L-ACME; ER/L-ISO; ER/L-UN; ER/L-UNJ; ER/L-W |
| Series | IscarThread |
| Toolholder Style | SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Back of Bar to Cutting Edge (mm) | 11.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4331 |
