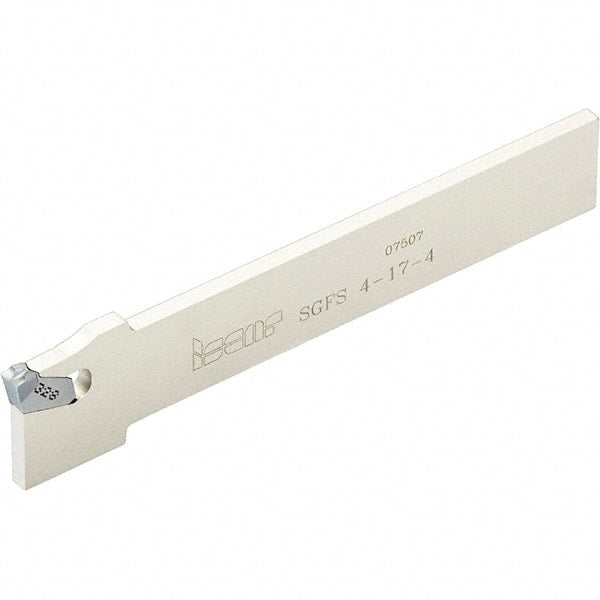

Iscar - 4.54 to 5.5mm Groove Width, Neutral Cut, SGFH Indexable Grooving Blade - GFN-A, GFN-C, GFN-J, GFN-M, GFN-W, GFR/L-C, GFR/L-J, GFR/L-W Insert Style, Series Self-Grip
Item #: 52733516
Brand: Iscar
Model #: 2301207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 4.54 |
| Minimum Groove Width (Decimal Inch) | 0.1787 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 72.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.8346 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 4.00 |
| Blade Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 5.50 |
| Maximum Groove Width (Decimal Inch) | 0.2165 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFN-M; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W |
| Complete Insert Compatibility | GFL 5J - 6D; GFN 4.8W; GFN 5A; GFN 5M; GFN 5W; GFR 4.8W - 4D; GFR 5J - 6D |
