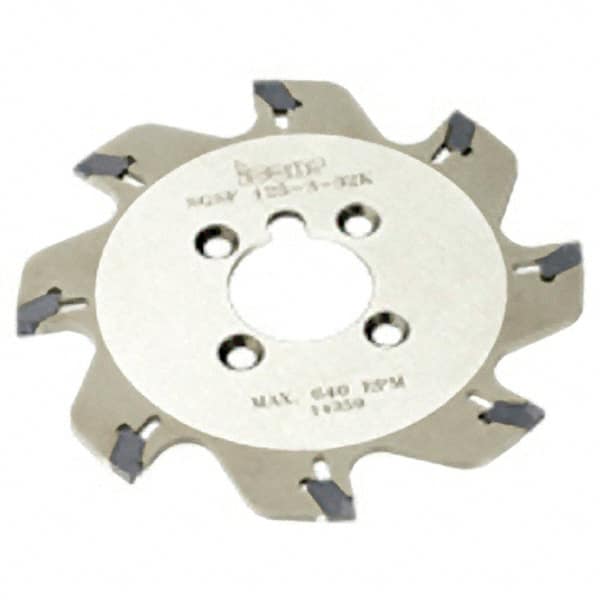

Iscar - Arbor Hole Connection, 1.3386" Depth of Cut, 125mm Cutter Diam, 1-1/16" Hole Diam, 8 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSF. Insert
Item #: 52733987
Brand: Iscar
Model #: 2300685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 8 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSF. |
| Staggered Tooth | No |
| Insert Holding Method | Self Clamping |
| Minimum Cutting Width (Decimal Inch) | 0.1063 |
| Maximum Cutting Width (Decimal Inch) | 0.1390 |
| Maximum Cutting Width (mm) | 3.53 |
