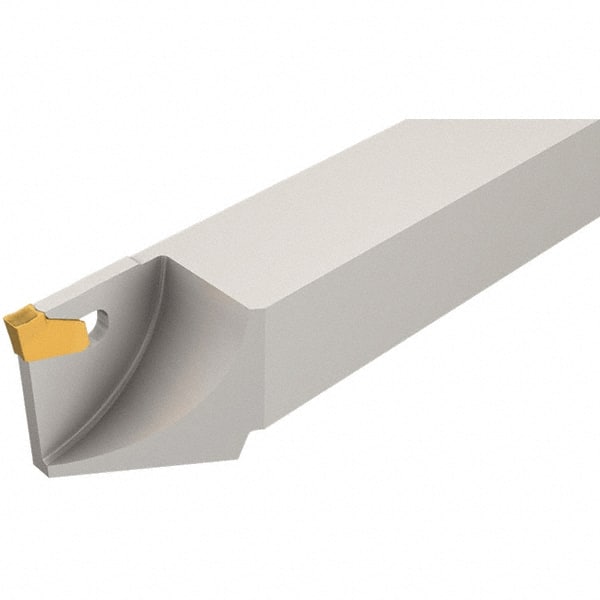

Iscar - SGTF, Left Hand Cut, 1.77" Max Workpc Diam, Indexable Cutoff Toolholder - 20mm Shank Width, 20mm Shank Height, 125mm OAL
Item #: 52734266
Brand: Iscar
Model #: 2301225
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7700 |
| Series | Self Grip |
| Toolholder Style | SGTF |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (mm) | 2.70 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Maximum Insert Width (mm) | 3.53 |
| Maximum Insert Width (Decimal Inch) | 0.1390 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Shank Length (Decimal Inch) | 4.9000 |
| Height to Shank Top (mm) | 5.00 |
| Height to Shank Top (Decimal Inch) | 0.1969 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
