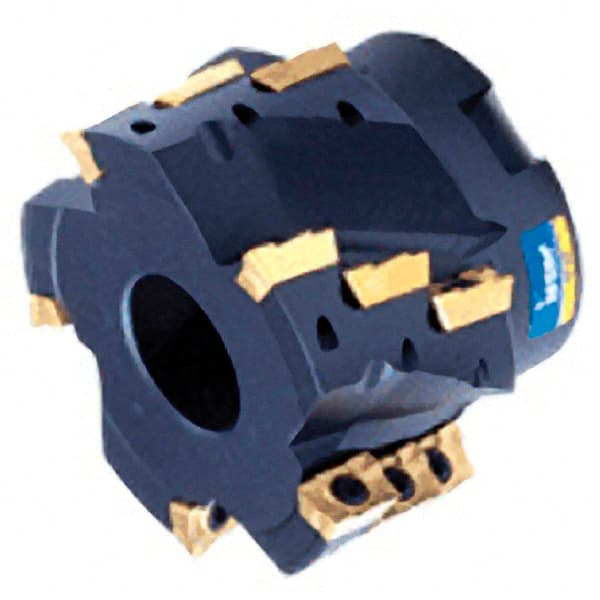

Iscar - 12 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 38mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 60mm High, AD.. 1505 Insert Compatibility, Series Heli2000
Item #: 52735008
Brand: Iscar
Model #: 3100770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 60.00 |
| Overall Height (Decimal Inch) | 2.3622 |
| Insert Compatibility | AD.. 1505 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | SM |
| Number of Flutes | 4 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Complete Insert Compatibility | ADCR 1505PDFR; ADCR 1505PDFR-P; ADCT 1505PDFR-HM; ADKR 150504PDR-HM; ADKR 1505PDL-HM; ADKR 1505PDR-HM; ADKT 150516L-HM; ADKT 150516R-HM; ADKT 150520R-HM; ADKT 150524L-HM; ADKT 150524R-HM; ADKT 1505PDL-HM; ADKT 1505PDR-HM |
