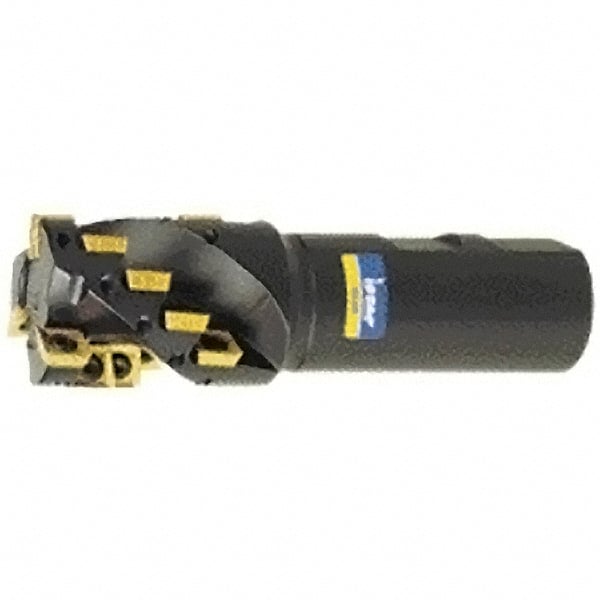

Iscar - 1-1/4" Cut Diam, 1.4" Max Depth of Cut, 1-1/4" Shank Diam, 4-1/2" OAL, Indexable Square Shoulder Helical End Mill - Weldon Shank, 90° Lead Angle, Series IsoMill
Item #: 52736089
Brand: Iscar
Model #: 3100565
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.5000 |
| Lead Angle | 90 |
| Series | IsoMill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.4000 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Weldon Flat | Yes |
