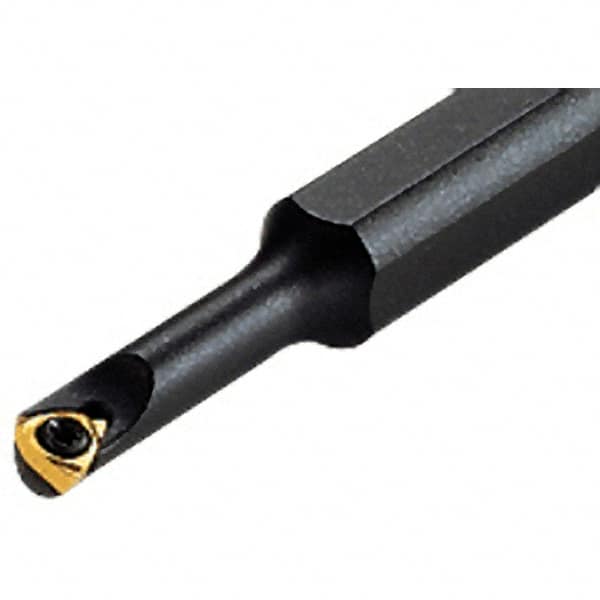

Iscar - 0.236" Min Bore Diam, 4" OAL, 3/8" Shank Diam, S-SWUB Indexable Boring Bar - 0.781" Max Bore Depth, WB.. 52.. Insert, Screw Holding Method
Item #: 52738143
Brand: Iscar
Model #: 3601387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.2360 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.7810 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WB.. 52.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.1200 |
| Complete Insert Compatibility | WBGT 520L; WBMT 52.004L; WBMT 52.004R; WBMT 520L; WBMT 520R |
