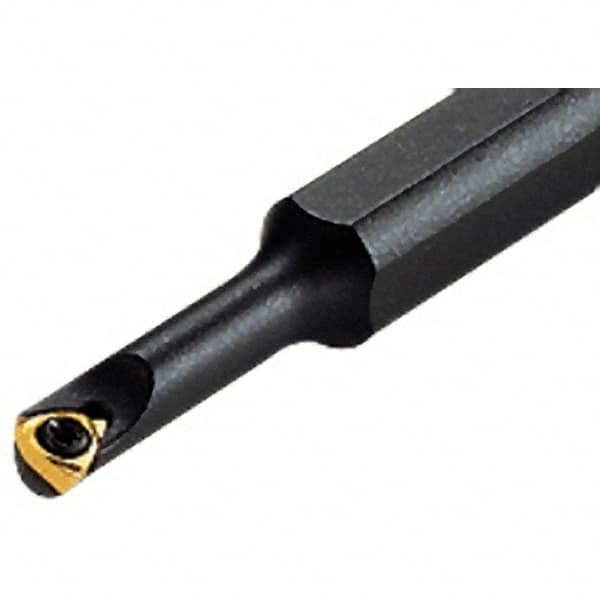

Iscar - 0.276" Min Bore Diam, 4" OAL, 3/8" Shank Diam, S-SWUB Indexable Boring Bar - 0.937" Max Bore Depth, WBMT 52.. Insert, Screw or Clamp Holding Method
Item #: 52738168
Brand: Iscar
Model #: 3601388
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.2760 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.9370 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WBMT 52.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.1400 |
| Rake Angle | -13 |
| Complete Insert Compatibility | WBMT 52.004R; WBMT 520R |
| Toolholder Material | Steel |
