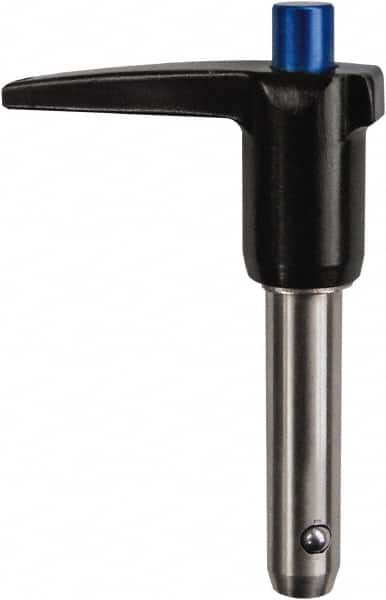

Monroe Engineering Products - 5/8" Diam, 5" Usable Length, L Handle, Push Button Quick Release Pin - 7-1/2" OAL, Grade 4140 Steel, Zinc-Plated Finish
Item #: 52877511
Brand: Monroe Engineering Products
Model #: LBL-625500
Exact Tooling IR#: 04
Features and Benefits
Push-button quick-release pins are positive-locking pins installed and removed through a simple push of a button.
L-handle quick-release pins have an extension from one side of the pin s head. They are used when T-handle styles will not fit.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Push Button Quick Release Pin |
| Handle Type | L Handle |
| System of Measurement | Inch |
| Pin Diameter (Inch) | 5/8 |
| Usable Length (Decimal Inch) | 5.0000 |
| Usable Length (Inch) | 5 |
| Overall Length (Inch) | 7-1/2 |
| Pin Material | Steel |
| Pin Finish/Coating | Zinc-Plated |
| Pin Material Grade | 4140 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 440C |
| Ball Hardness | RC 60-62 |
| Shank Hardness | RC 36-40 |
| Handle Material | Aluminum |
| Handle Finish/Coating | Black Anodized |
