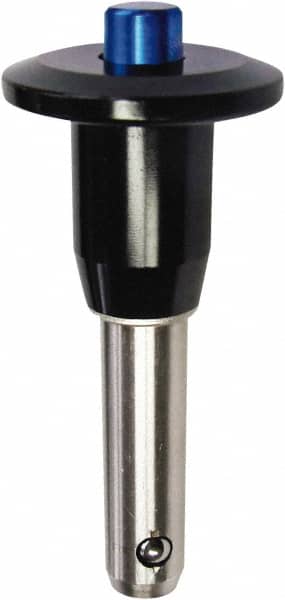

Monroe Engineering Products - 3/8" Diam, 2" Usable Length, Button Handle, Push Button Quick Release Pin - 3-13/32" OAL, Grade 17-4 Stainless Steel
Item #: 52877545
Brand: Monroe Engineering Products
Model #: LBR-SS375207
Exact Tooling IR#: 04
Features and Benefits
Push-button quick-release pins are positive-locking pins installed and removed through a simple push of a button.
Button handle quick-release pins feature a small push button on the pin s head. The pin is inserted and removed by pushing the button.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Push Button Quick Release Pin |
| Handle Type | Button Handle |
| System of Measurement | Inch |
| Pin Diameter (Inch) | 3/8 |
| Usable Length (Decimal Inch) | 2.0000 |
| Usable Length (Inch) | 2 |
| Overall Length (Inch) | 3-13/32 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 440C |
| Ball Hardness | RC 60-62 |
| Shank Hardness | RC 40-45 |
| Handle Material | Aluminum |
| Handle Finish/Coating | Black Anodized |
