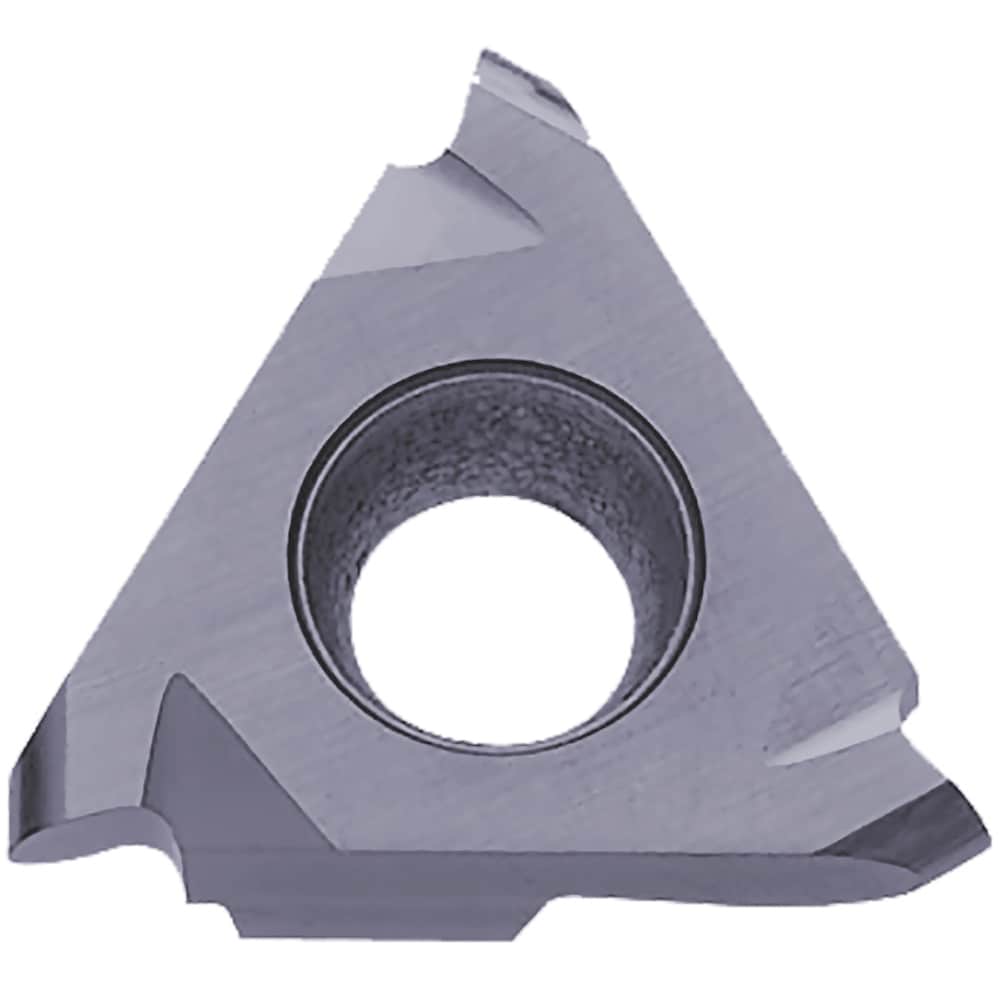

Grooving Insert: GBA 43 R, PR2025, Carbide
Item #: 78031275
Brand: Kyocera
Model #: TLY00114
Product Specifications
| Insert Style | GBA |
| Insert Size Code | 43 |
| Cutting Width (mm) | 1.00 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Material | Carbide |
| Manufacturer Grade | PR2025 |
| Full Radius | Yes |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw or Clamp |
| Insert Size | 43 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | M |
| Ansi Code | GBA43L100050RPR2025 |
| Iso Code | GBA43L100-050R |
| Manufacturers Catalog Number | temp-TLY00169 |
| UNSPSC Code | 23242107 |
| Cut Condition | Interrupted |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (mm) | 1.00 |
| Chip Breaker | R |
| Inscribed Circle (mm) | 12.70 |
| Gage Diameter (Decimal Inch) | 0.2165 |
| Coating/Finish | MEGACOAT NANO EX |
| For Use With | KGBAL2525M22-15; KIGBAR4032-22; KGBASR2020K22-15; KGBAL2020K22-15; KGBASR2525M22-15 |
| Country of Origin | Japan |
