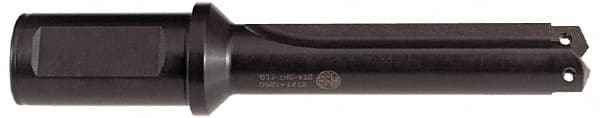

Allied Machine and Engineering - 55/64" to 15/16" Diam 2-1/4" Max Depth Straight Flute Spade Drill
Item #: 79729257
Brand: Allied Machine and Engineering
Model #: 21015S-100F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 1.5 |
| Minimum Drill Diameter (Inch) | 55/64 |
| Maximum Drill Diameter (Inch) | 15/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 5-49/64 |
| Maximum Drill Depth (Inch) | 2-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3-31/64 |
| Body Length (Inch) | 3-5/8 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
