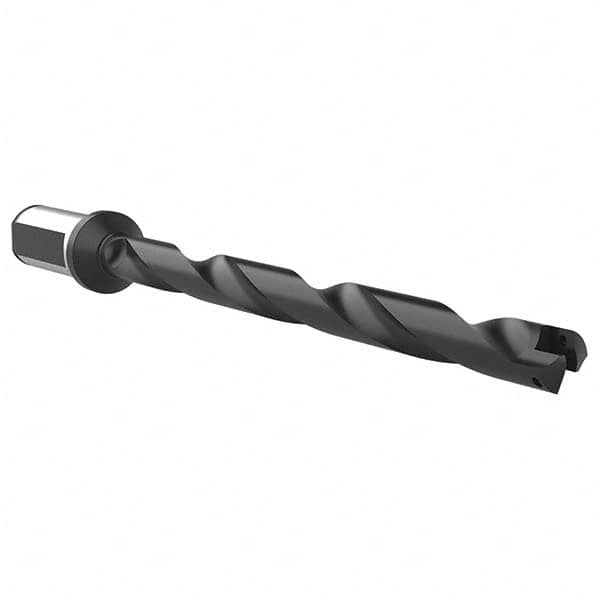

Allied Machine and Engineering - 17.53mm to 24.38mm Diam 219mm Max Depth Helical Flute Spade Drill
Item #: 12329223
Brand: Allied Machine and Engineering
Model #: 24510H-25FM
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (mm) | 17.53 |
| Minimum Drill Diameter (Decimal Inch) | 0.6900 |
| Maximum Drill Diameter (mm) | 24.38 |
| Maximum Drill Diameter (Decimal Inch) | 0.9600 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Standard Plus Length |
| Overall Length (mm) | 312.30 |
| Maximum Drill Depth (mm) | 219.00 |
| Flute Type | Helical Flute |
| Body Length (mm) | 256.30 |
| Shank Length (mm) | 56.00 |
| Series Code/Seat Size | 1 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
