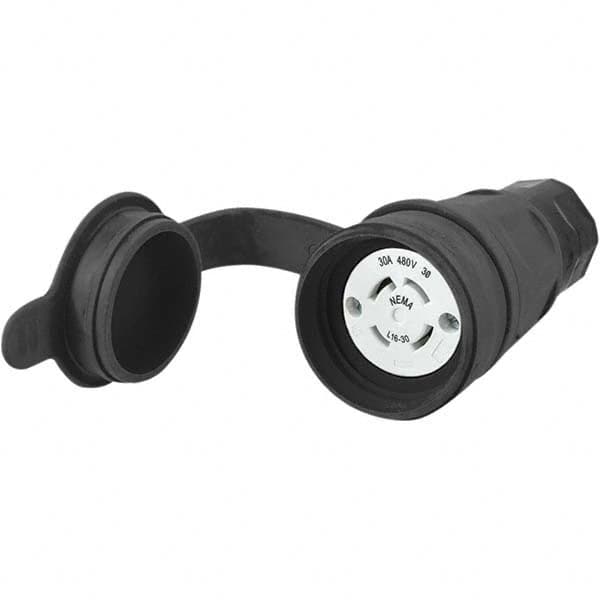

Hubbell Wiring Device-Kellems - 3-Phase Delta 480 VAC 30A NEMA L16-30R Industrial Twist Lock Connector
Item #: 16070898
Brand: Hubbell Wiring Device-Kellems
Model #: HBL29W76BK
| Product Specifications | |
|---|---|
| Connector Type | Connector |
| Grade | Industrial |
| NEMA Configuration | L16-30R |
| Amperage | 30 |
| Voltage | 3-Phase Delta 480 VAC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Color | Black |
| Resistance Features | Watertight |
| Maximum Cord Diameter (Decimal Inch) | 1.0500 |
| Minimum Cord Diameter (Decimal Inch) | 1.0500 |
| Number of Phases | 3 |
| Grounding Style | Grounding |
| Ingress Protection Rating | IP65; IP66; IP67 |
| Material | Thermoplastic |
| Standards Met | UL Listed; CSA Certified |
