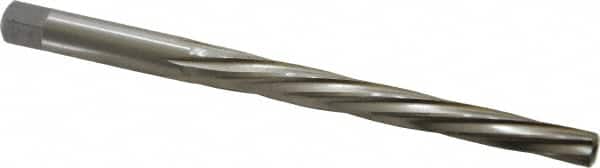

Interstate - #5 Pin, 0.2994" Diam, 0.2409" Small End, 5/16" Diam Straight Shank, 2-13/16" Flute, Taper Pin Reamer
Item #: 02402055
Brand: Interstate
Model #:
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #5 |
| Small End Diameter (Decimal Inch) | 0.2409 |
| Reamer Diameter (Decimal Inch) | 0.2994 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (Inch) | 4-5/16 |
| Flute Length (Inch) | 2-13/16 |
| Shank Diameter (Inch) | 5/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
