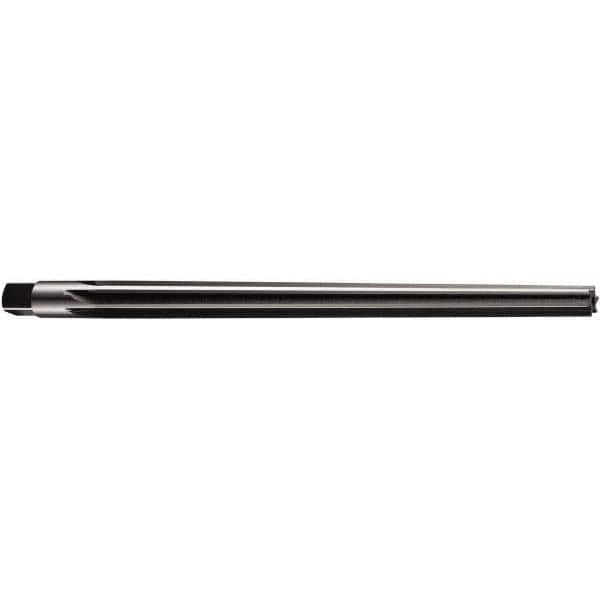

DORMER - 10mm Pin, 0.528" Diam, 0.3901" Small End, 13.3mm Diam Straight Shank, 175mm Flute, Taper Pin Reamer
Item #: 65642134
Brand: DORMER
Model #: 0182574
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 10.00 |
| Small End Diameter (mm) | 9.90 |
| Small End Diameter (Decimal Inch) | 0.3901 |
| Reamer Diameter (mm) | 13.40 |
| Reamer Diameter (Decimal Inch) | 0.5280 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (mm) | 215 |
| Flute Length (mm) | 175 |
| Number of Flutes | 6 |
| Shank Diameter (mm) | 13.30 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright/Oxide |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
