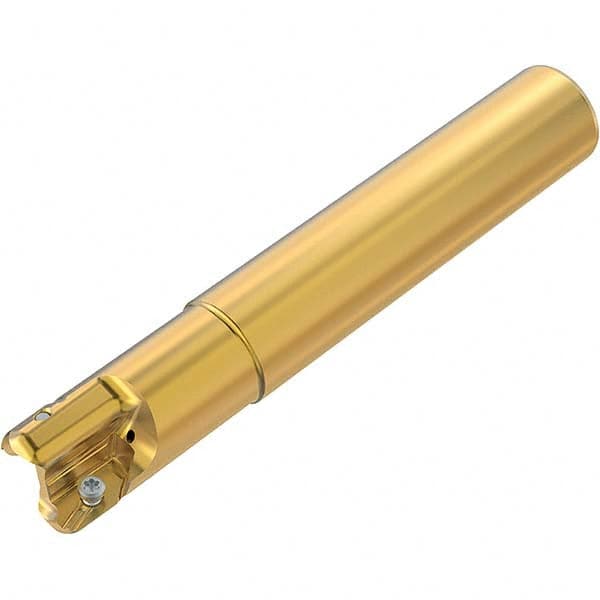

Seco - Indexable Copy End Mills Cutting Diameter (Inch): 5/8 Cutting Diameter (Decimal Inch): 0.6250
Item #: 18989640
Brand: Seco
Model #: 03245370
Product Specifications
Indexable Copy End Mills; Cutting Diameter (Inch): 5/8 ; Cutting Diameter (Decimal Inch): 0.6250 ; Maximum Depth of Cut (Decimal Inch): 0.6250 ; Shank Type: Straight ; Shank Diameter (Inch): 5/8 ; Number of Cutter Inserts: 2
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 5/8 |
| Number of Cutter Inserts | 2 |
| Insert Style | XPKX08 |
| Toolholder Style | R217.97 |
| Series | R217.97 |
| Overall Length (mm) | 100.00 |
| Insert Diameter (mm) | 8.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Shank Length (mm) | 67.00 |
| Maximum RPM | 40000 |
